Unitree
B1
Quadruped Robot
Continuous OTA Software Upgrade and Update

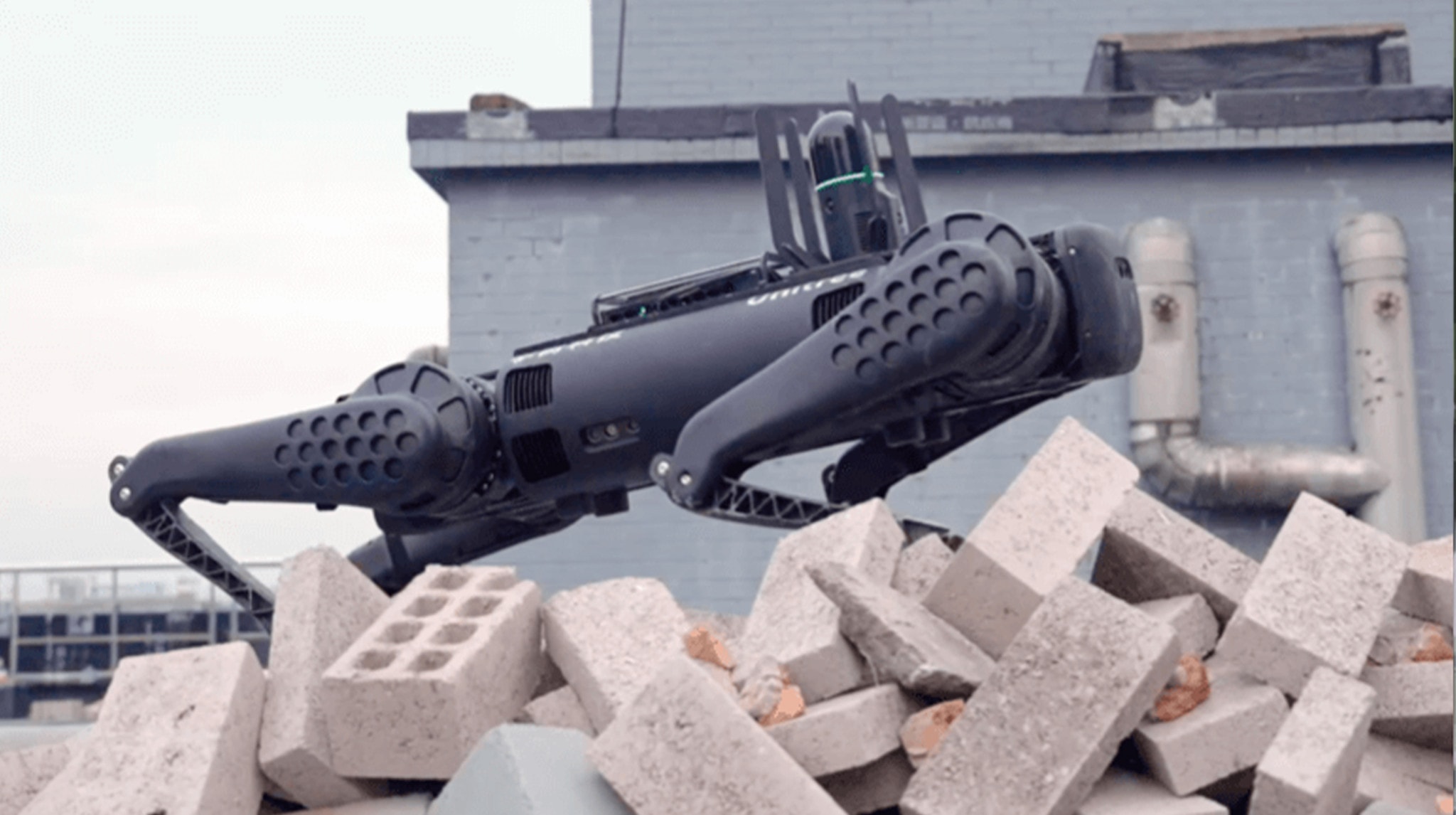

All-Terrain Mobility
Advanced quadruped robot designed for challenging environments and heavy-duty applications
Key Features
Exceptional terrain adaptability with ability to navigate complex obstacles and uneven surfaces.- High payload capacity of 20kg while walking and 80kg when standing stationary.
- Advanced perception system with multiple sensors for autonomous navigation and obstacle avoidance.
Industrial Grade Performance
Specifications
Maximum walking speed of 1.2m/s for efficient operation in various environments.- IP67 standard protection with optional IP68 for extreme weather and water resistance.
- Extended endurance with 2-2.5 hours of continuous operation on a single charge.
- Compact design measuring 1126mm x 467mm x 636mm for versatile deployment.

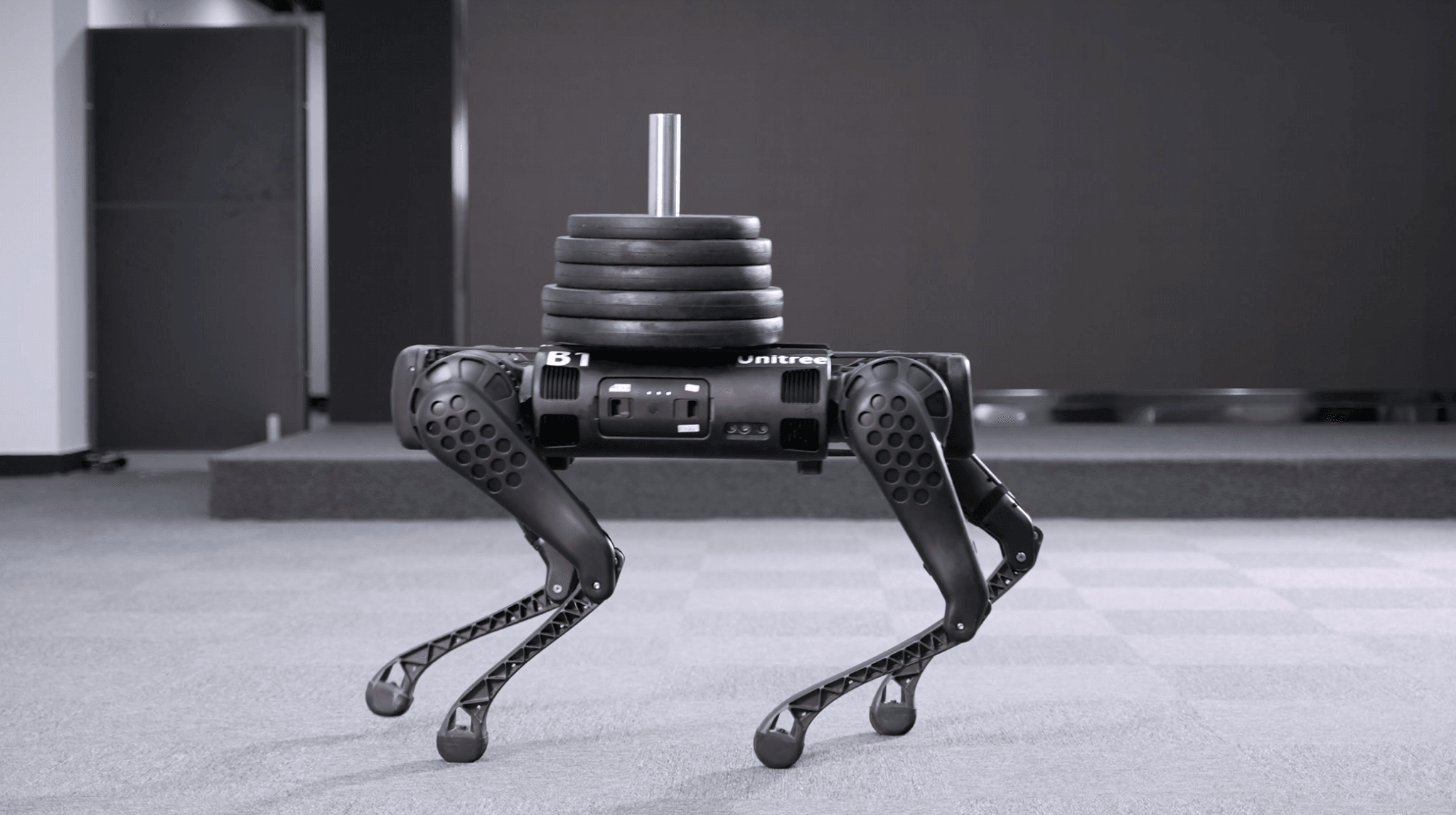

Advanced Load Handling
Payload Capabilities
Maximum Load Capacity: 20kg Walking / 80kg Standing
The B1 robot excels in industrial applications requiring heavy payload transportation and manipulation. Its robust design ensures reliable performance even under maximum load conditions.
Stable walking with 20kg payloadStationary operations up to 80kgPrecise load positioning and controlB1 Specs
| Parameter | B1 |
|---|---|
| Size (Standing) | 1126mm x 467mm x 636mm |
| Weight (With Battery) | 55kg |
| Ingress Protection | IP68 (optional), IP67 (standard) |
| Endurance Time | 2-2.5 hours |
| Max Walking Load (Payload) | 20kg |
| Max Standing Load | 80kg |
| Max Walking Speed | 1.2m/s |
| Stairways | 20cm |
| Slopes | 30° |
| Perceptual Controller | Jetson Xavier NX*3 |
| Down Looking Terrain Direct Sensing Sensor | ✓ |
| Look Around Terrain Direct Sensing Sensor | ✓ |
| Wireless Vector Positioning Technology | ✓ |
| Max Instantaneous Torque Of Knee Joint | 210N.m |
| Gigabit Network Port | ✓ |
| Standard Configuration | 5G wireless network communication, GNSS acquisition (GPS, Beidou, etc.), over-the-horizon communication |
| Optional | Smart manipulator, autonomous charging pile, PTZ camera, security patrol mounting platform, emergency rescue mounting platform |
| Application | EXPLORATION & DETECTION SECURITY PATROL EMERGENCY RESCUE |
*This manual will be modified appropriately according to product improvement, specification change and other reasons without additional notice.
